Optički odašiljač za optički prijenos satelitskih signala i 16 CATV kanala
Dolazni RF signali se pretvaraju u optičke signale
Automatska kontrola pojačanja
1 optički izlaz (SC / APC)
5 kaskadnih RF izlaza

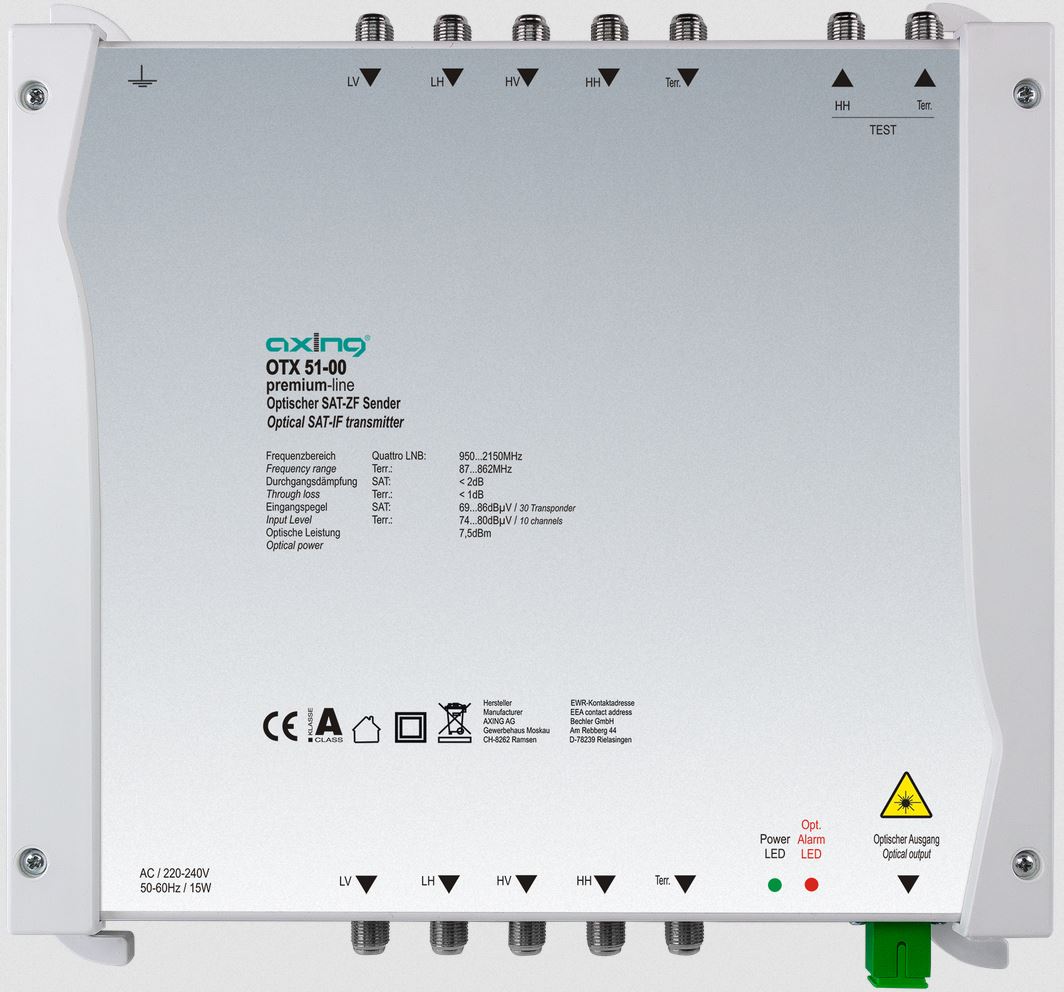

OTX 51-00 Optical transmitter / OTX 51-00 Optischer Sender
For optical transmission of satellite signals and 16 CATV channels
Incoming RF signals are converted into optical signals
Automatic gain control
1 optical output (SC/APC)
5 cascade RF outputs
Inputs
Number 5
Frequency range 87… 862 MHz @ DVB-C/T/T2
950…2150 MHz @ DVB-S/S2/S2X
number of channels (DVB-C/T/T2) max. 16
Input level 74…80 dBµV @ DVB-C/T/T2
69…86 dBµV @ DVB-S/S2/S2X
AGC level dynamics 20 dB
Max. LNB current 250 mA per input @ 14 V
Test ports 2
Test port frequency range (TERR | SAT HH) 87…862 | 950…2150 MHz
Trunk outputs
Number 5
Throug loss <2 dB
Type F-female
Return loss 10 dB
Output
Number of optical outputs 1
Optical connector SC/APC
Optical return loss >45 dB
Optical level +7.5 dBm
Wavelength 1310 nm
Safety class 1M
General
Operation voltage 184…264 VAC/50…60Hz
Power consumption 15 W
Operating temperature range -5…+50°C
Dimensions (W × H × D) appr. 230 x 230 x 50 mm
Weight 1,880 kg
